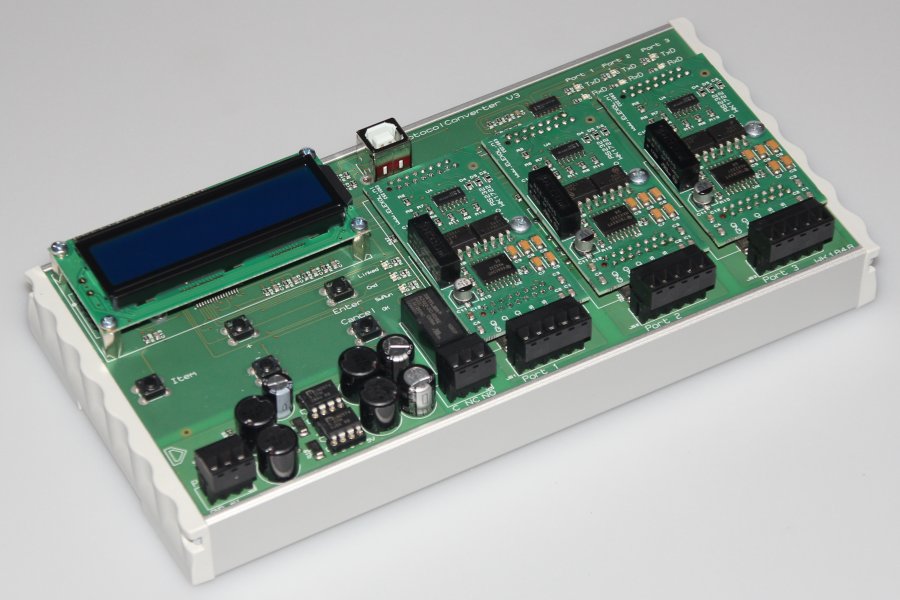

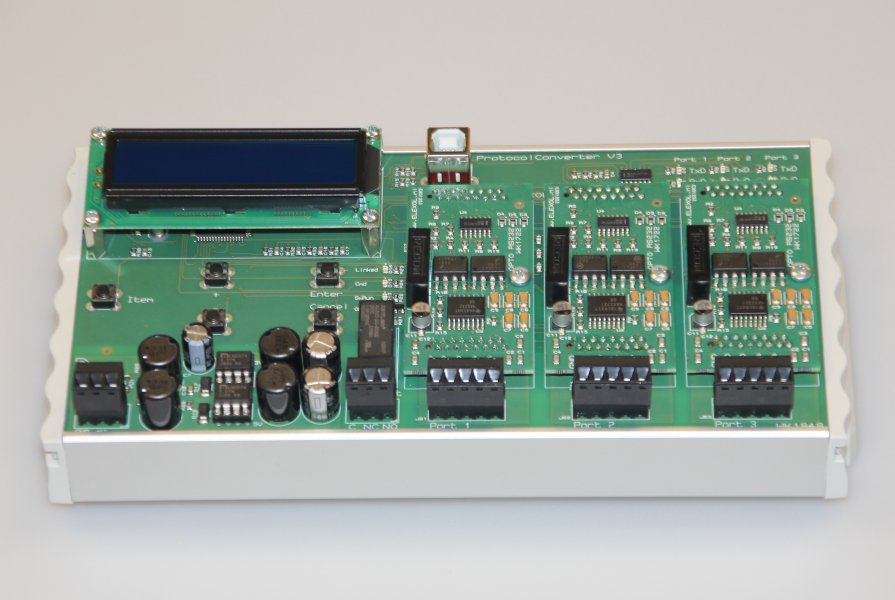

Protocol Converter V3

Protocol converter V3 with 3 serial ports for RS232, RS422 or RS485. With USB diagnostics. This converter comes standard in a Din-rail enclosure.

The protocol converter converts signals from a fire alarm system or building management system, for example, into a protocol for a paging system from Ascom, Philips, Nira and others to specification.

Converter settings are adjusted through a Configuration Tool. This is a Windows application that can be run on a PC.

For diagnostic applications, this PC can also be used. For quick diagnosis, the ProtocolConverter V3 also features an LCD display showing the possible source of the fault in text.

The protocol converter operates on a supply voltage between 10 and 35V DC and also features a relay that can be used to transmit faults to an external system. For more information about this converter’s capabilities and available protocols, click here or contact us, at

ESPA 4.4.4. merger

Firmware for the protocolconverter V3 to combine two ESPA 4.4.4. inputs to one ESPA 4.4.4. output.

More info…
